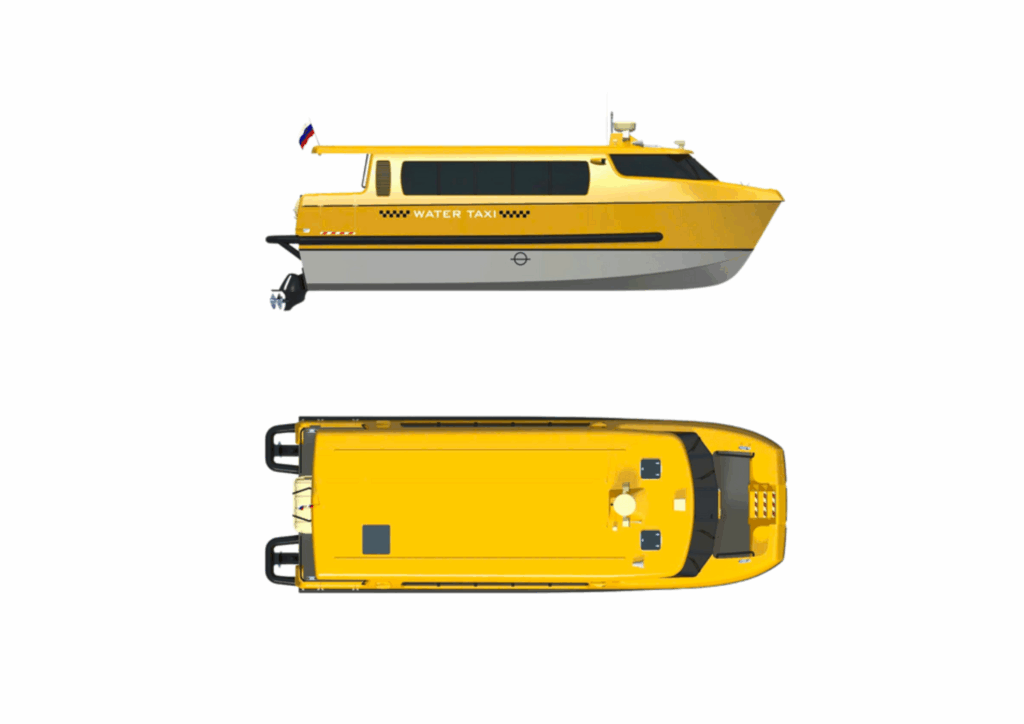

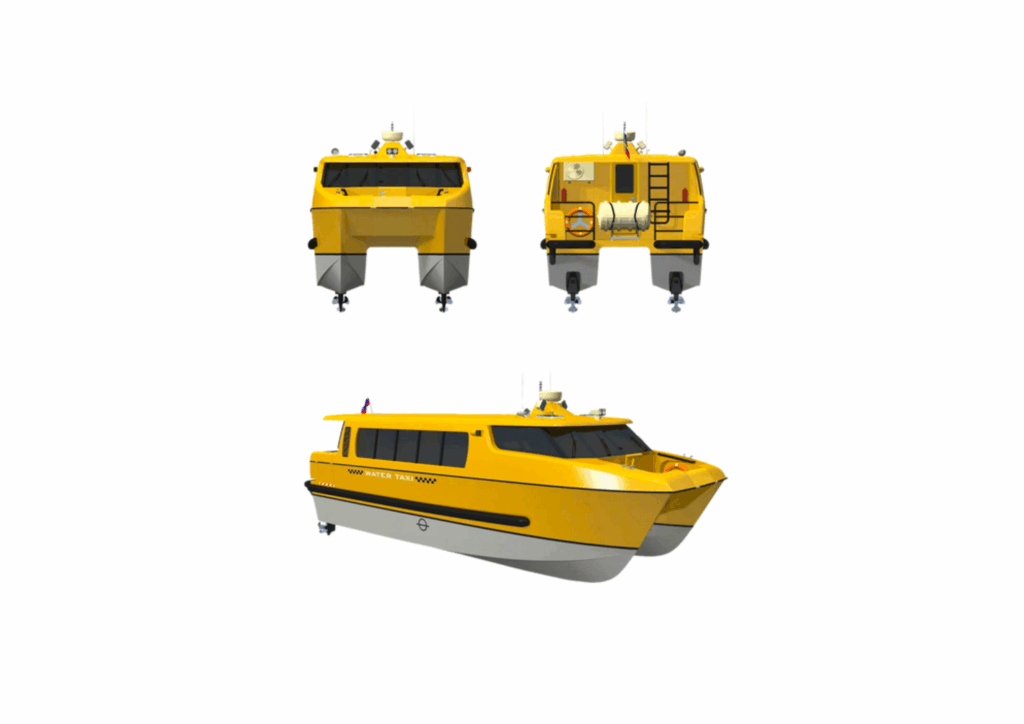

CCX 1100
CCX 1100 is an 11.8-meter twin-hull passenger boat designed for water-taxi and commuter service.
Its composite hull built with Sandwich Infusion technology provides a stable, dry ride.
Configured for 2 crew and up to 36 passengers, it offers efficient cruising around 23 knots and a top speed near 32 knots.
Specifications
| Model | CCX 1100 – Passenger Catamaran |
| Overall length (Lmax) | 11.80 m |
| Overall beam (Bmax) | 4.05 m |
| Hull depth (D) | 1.98 m |
| Maximum draft (d) | 0.55 m |
| Inboard engines | Diesel (FPT Engine), 2 × 330 HP |
| Outboard option | Diesel COX V8, 300 HP (COX) |
| Cruising speed (Ve) | about 23 knots |
| Maximum speed (Vmax) | about 32 knots |
| Crew | 2 persons |
| Capacity (max) | 36 persons |
| Fuel tank | 300 L |
| Fresh water tank | 50 L |
| Displacement (max) | 3.5 tons |
| Hull construction | Composite, Sandwich Infusion technology |
Vietnam Register, restricted class 3: permitted to operate on rivers, coastal and near-shore waters, not more than 20 nautical miles from shore.
Composite hull manufactured using Sandwich Infusion technology.
